Equipment introduction:
The multi-station laser marking machine has stable output power, good optical mode and fast marking speed, which can meet mass production. The machine has beautiful appearance and simple operation, and can meet the needs of industrial continuous work.

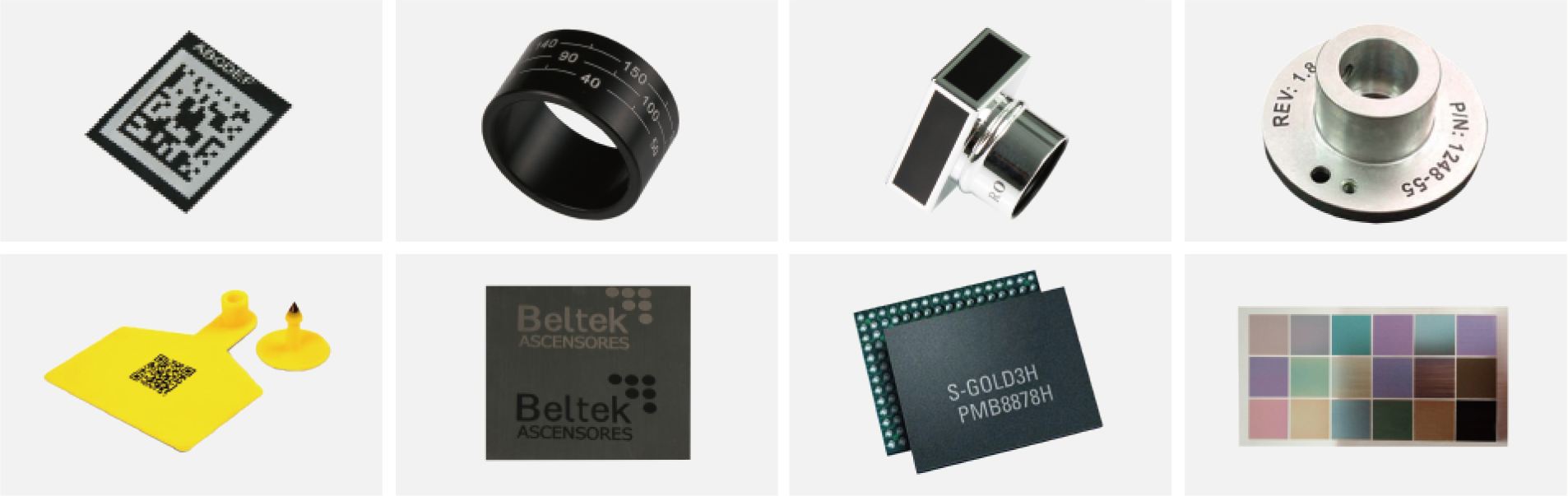

Applicable materials:
Metal and various non-metallic materials, high hardness alloys, oxides, electroplating, coating, ABS, epoxy resin, ink, ceramics, engineering plastics, etc.
Application industry:
Plastic transparent button, integrated circuit (IC), IC chip, digital product parts, precision machinery, jewelry, sanitary ware, measuring tools, watch glasses, electrical appliances, electronic components, hardware accessories, hardware tools, mobile communication components, steam High-precision product identification such as motorcycle parts, plastic products, medical equipment, building materials and pipes.
Product Name | Items | Brand | QTY | Remark |

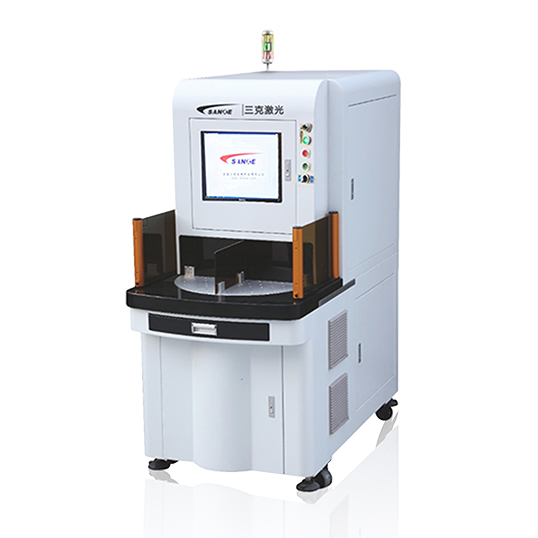

Multi-station Laser Marking Machine | Frame Structure | 3K Laser | 1 Set | as Fig |
Laser Generator | IPG、SPI、V-Gen、 Nerfurn、JPT、MAX、Raycus(Option) | 1 Set | ||
Galvanometer | China or Import (Option) | 1 Set | ||
Software and Control Card | JCZ or Samlight | 1 Set | ||
PC | Industrial Computer | 1 Set | ||
Display screen | LED | 1 Set |
Performance/Model | SK-F20 | SK-F30 | SK-F50 | SK-F100 |
Laser Output Power | 20W | 30W | 50W | 100W |
Wavelength | 1064nm | 1064nm | 1064nm | 1064nm |
Beam Quality M2 | <1.3 | <1.3 | <1.3 | <1.3 |
Q-Switch Frequency | 20kHz~200kHz | 30kHz~200kHz | 50kHz~200kHz | 50kHz~200kHz |
Marking Area | 100×100~200x200mm (Option) | 100×100~200x200mm(Option) | 100×100~200x200mm(Option) | 100×100~200x200mm(Option) |
Marking Depth | ≤1mm | ≤1.5mm | ≤2mm | ≤2mm |
Machine Consumable Power | 800W | 800W | 800W | 800W |
Min line width | 0.03mm | 0.04mm | 0.05mm | 0.06mm |
Repeatability Precision | ±0.0001mm | ±0.0001mm | ±0.0001mm | ±0.0001mm |
Voltage | 220V±10% / 50Hz /2.5A | 220V±10% / 50Hz /2.5A | 220V±10% / 50Hz /2.5A | 220V±10% / 50Hz /2.5A |
Machine Dimension | 750mm×600mm×1400mm | 750mm×600mm×1400mm | 750mm×600mm×1400mm | 750mm×600mm×1400mm |
Cooling System | Air | Air | Air | Air |
