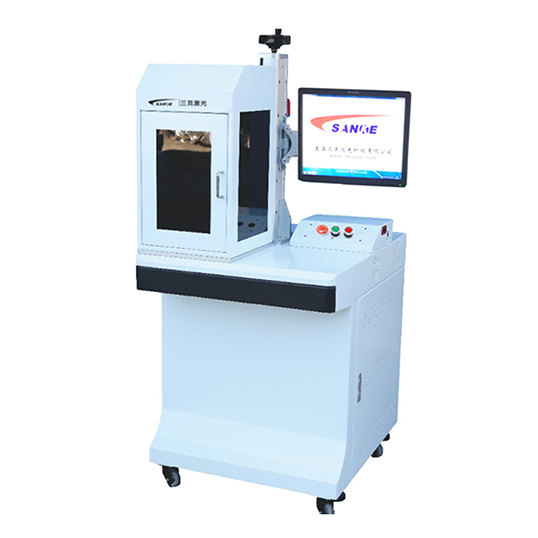

Equipment introduction:
The closed fiber laser marking machine adds a laser protective cover, which meets the requirements of foreign customers and is suitable for export.
Software features:
1. Can receive BMP, JPG, DXF, PLT, AI and other format files.
2. Automatically generate various serial numbers, production dates, 1D codes, 2D codes.

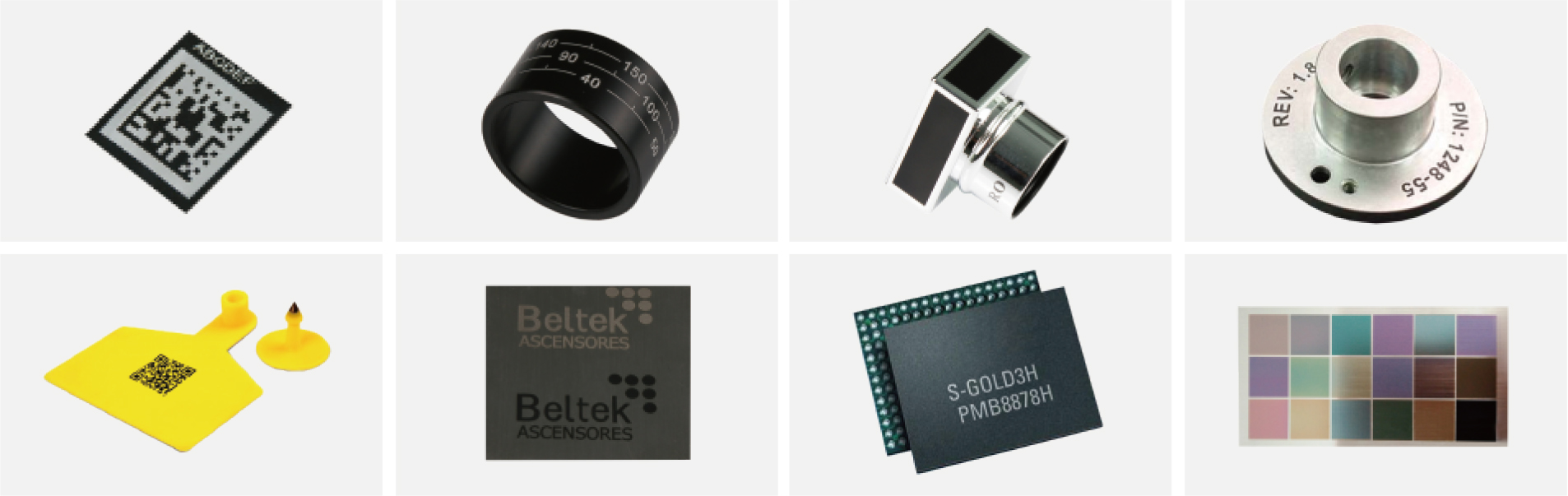

Applicable materials:
Metal and various non-metallic materials, high hardness alloys, oxides, electroplating, coating, ABS, epoxy resin, ink, ceramics, engineering plastics, etc.
Applicable industry:
Plastic transparent button, integrated circuit (IC), IC chip, digital product parts, precision machinery, jewelry, sanitary ware, measuring tools, watch glasses, electrical appliances, electronic components, hardware accessories, hardware tools, mobile communication components, steam High-precision product identification such as motorcycle parts, plastic products, medical equipment, building materials and pipes.
Product Name | Items | Brand | QTY | Remark |
Full Enclosed Laser Marking Machine | Frame Structure | 3K Laser | 1 Set | as Fig |
Laser Generator | IPG、SPI、V-Gen、 Nerfurn、JPT、MAX、Raycus(Option) | 1 Set | ||
Galvanometer | China or Import (Option) | 1 Set | ||
Software and Control Card | JCZ or Samlight | 1 Set | ||
PC | Industrial Computer | 1 Set | ||
Display screen | LED | 1 Set |
Performance/Model | SK-F20 | SK-F30 | SK-F50 | SK-F100 |
Laser Output Power | 20W | 30W | 50W | 100W |
Wavelength | 1064nm | 1064nm | 1064nm | 1064nm |
Beam Quality M2 | <1.3 | <1.3 | <1.3 | <1.3 |
Laser Q-Switch Frequency | 20kHz~200kHz | 30kHz~200kHz | 50kHz~200kHz | 50kHz~200kHz |
Marking Area | 100×100~200x200mm可选 | 100×100~200x200mm可选 | 100×100~200x200mm可选 | 100×100~200x200mm可选 |
Marking Depth | ≤1mm | ≤1.5mm | ≤2mm | ≤2mm |
Machine Power | 800W | 800W | 800W | 800W |
Min line width | 0.03mm | 0.04mm | 0.05mm | 0.06mm |
Repeatability Precision | ±0.0001mm | ±0.0001mm | ±0.0001mm | ±0.0001mm |
Voltage | 220V±10% / 50Hz /2.5A | 220V±10% / 50Hz /2.5A | 220V±10% / 50Hz /2.5A | 220V±10% / 50Hz /2.5A |
Machine Dimension | 750mm×600mm×1400mm | 750mm×600mm×1400mm | 750mm×600mm×1400mm | 750mm×600mm×1400mm |
Cooling System | Air | Air | Air | Air |
