Laser Cleaning Machine
  • Description
  • Config
  • Technical
  • Samples
  • Video
  • Download

Introduction:

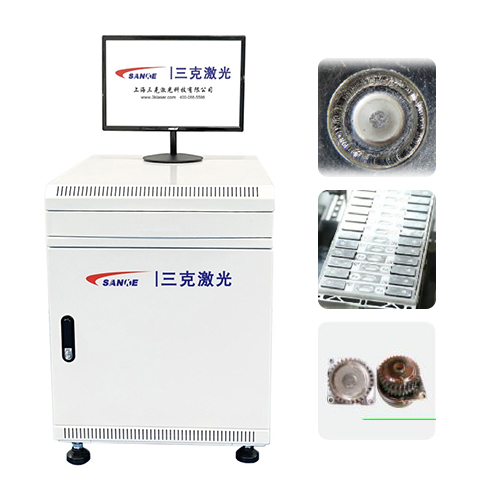

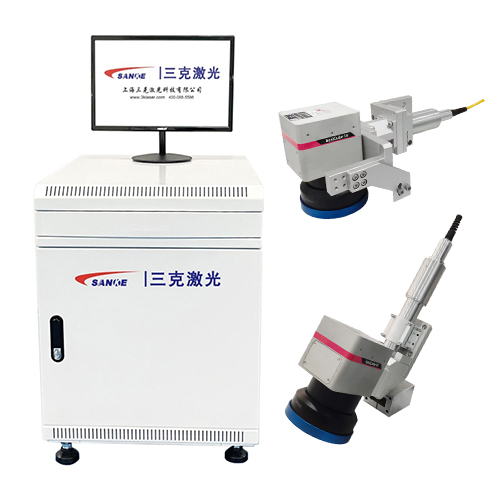

Laser clean machine, a new type of high-tech products for cleaning the surface, can be cleaning without chemical reagent,medium,dusty and water,and the surface clearness is quite good,also can remove the resin,grease,stains,dirt,embroidered turbidity,coating,paint from the products surface.

Feature:

■ No grinding, non-contact characteristics,efficient and environmentally friendly, no chemical pollution,almost without damage to the surface of the substrate.

■ Can set the light width, cleaning accuracy.

■ Easy to operate,use when powered on and no consumables.

■ Adjustable laser parameters for a variety of environments, better results.

Application:

Widely used in Mold industry, automobile manufacturing, shipbuilding industry, food processing, wastewater treatment, rubber tires, oil, chemical industry, etc.

Materials:

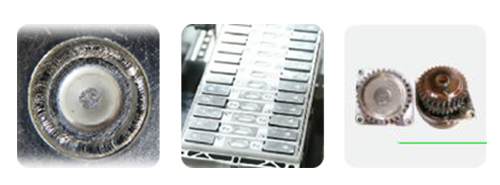

Removal the rust of the metal、oil、dirt,removal the coating of the products,removal the welding surface,removal the painting surface,removal the dust of the statues,removal the residue of the rubber molds.


Product NameItemBrandQTYMark
Laser CleaningFrame Structure 3K Laser1 Setas Fig
Laser GeneratorGerman/China(Optional)1 Set
GalvanometerGerman/China(Optional)1 Set
Software and Control Card3K Laser1 Set
Long Focus Mirror3K Laser1 Set
Power supply and Drive system3K Laser1 Set


ItemSpecification
ModelSK-CL100SK-CL200SK-CL300SK-CL500
Laser Power 100W200W300W500W
Laser TypeFiber/Semiconductor
Wavelength1064nm
Cooling SystemAirWater
Focal Depth5mm10mm
Machine TypeHandhold/Automatic
N.W35KG150-200KG
Voltage220V±10%,50Hz
