Laser Drilling and Cutting
  • Description
  • Config
  • Technical

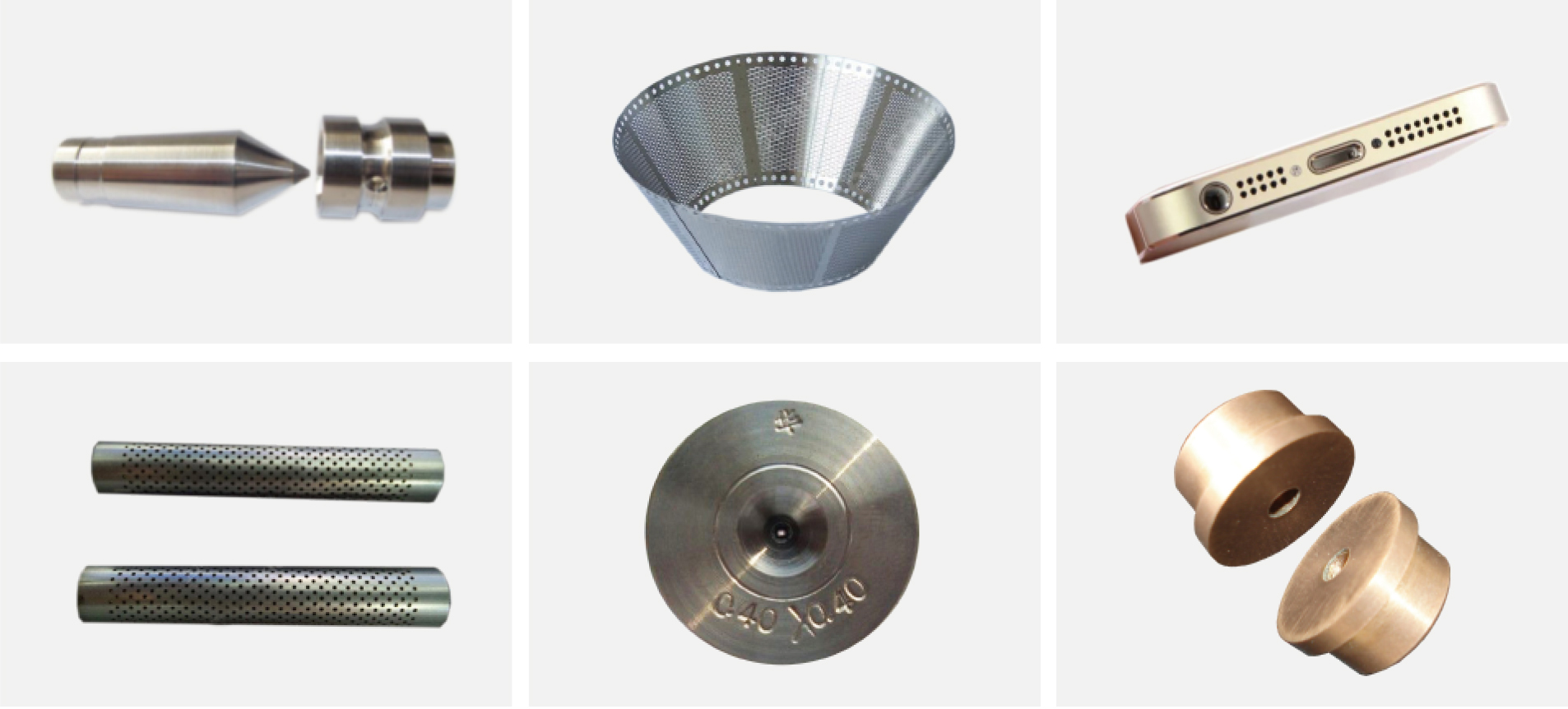

  • Samples
  • Video
  • Download

Features:

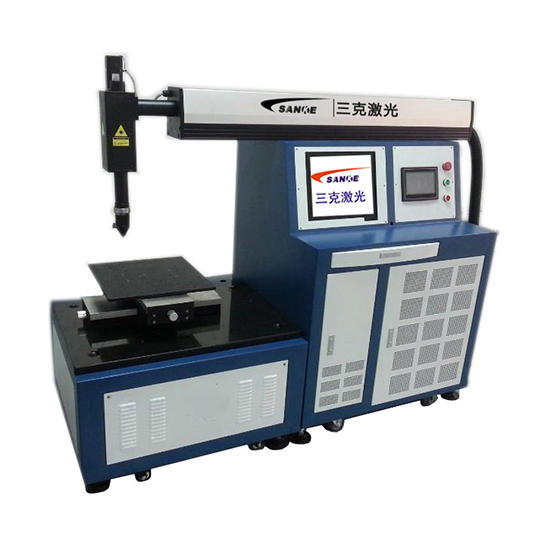

The laser drilling machine is a special equipment for punching holes designed by laser technology and numerical control technology. It has the characteristics of stable laser power, good beam mode, high peak power, stability and easy operation.

Applications:

Automobile injector, fine hole perforation, nozzle, atomizer, precision mold, aerospace electronics, microcrystalline circuit board, filter element, laser punching screen, microporous membrane, microporous aeration tube, metal micro Hole tube, microporous membrane filter, internal combustion engine fuel nozzle, watch splint, aircraft turbine blade, detector, sensor, fuel injection hole, punched aluminum plate, microporous aerator, microporous oscillator, microporous mesh, fog The nozzle.

Product NameItemsSpec and BrandRemark

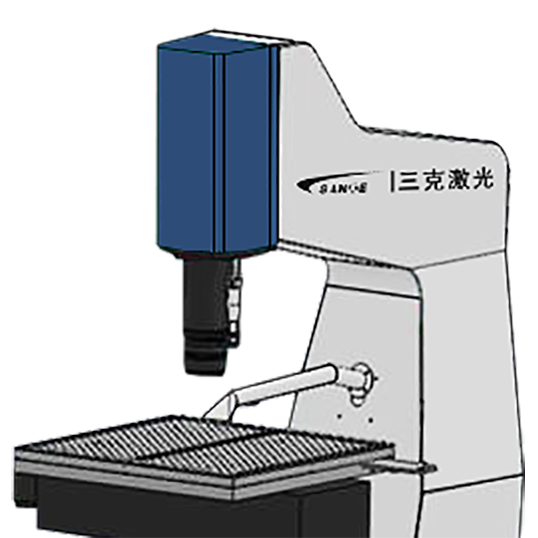

Superhard Material Laser CuttingMain Host3K Laseras Fig
Laser GeneratorOption
Special laser cutting CNC system3K Option
Cutting head3K Option
Cabinet、Operation table3K laser


Performance/ModelUnitSK-LD200
Laser PowerW200W
Wavelengthnm1064NM
Spot Diametermm0.015MM
Pulse WidthMS0.1MS-20MS
Hole depthmm1.5MM
Aiming and Positioning
red light indicate/CCD monitor
Control System
PC/PLC
Pulse FrequencyHz0.1--300HZ
Workbench travelmm300×300MM,customize
Machine Consumable PowerKW10KW
Voltage
AC380V/50HZ/30A
Cooling System
Water Cooling
