Equipment introduction:

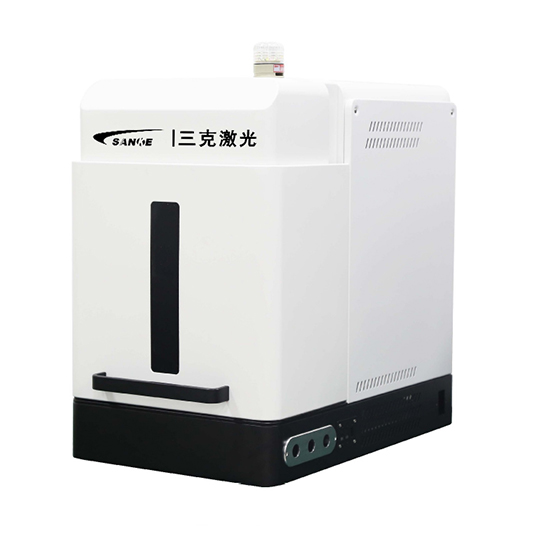

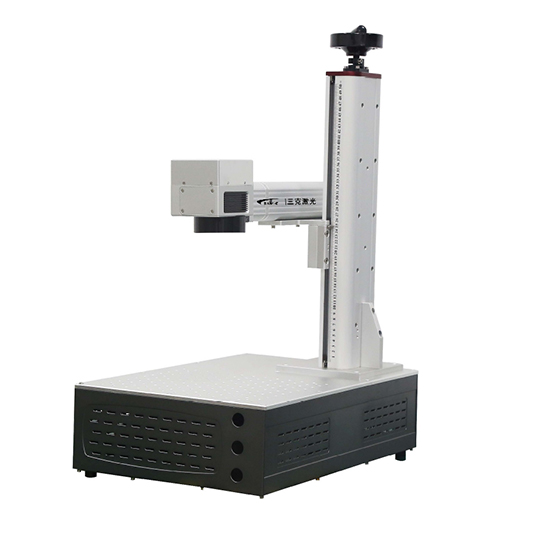

The desktop fiber laser marking machine adopts fiber laser and galvanometer system, which is simple, light, flexible and convenient. It can be used for most common laser marking applications, such as characters, text, graphics, logo, QR code, etc. Light, suitable for small space applications.
Applicable materials:
Metal and various non-metallic materials, high hardness alloys, oxides, electroplating, coating, ABS, epoxy resin, ink, ceramics, engineering plastics, etc.
Applicable industry:

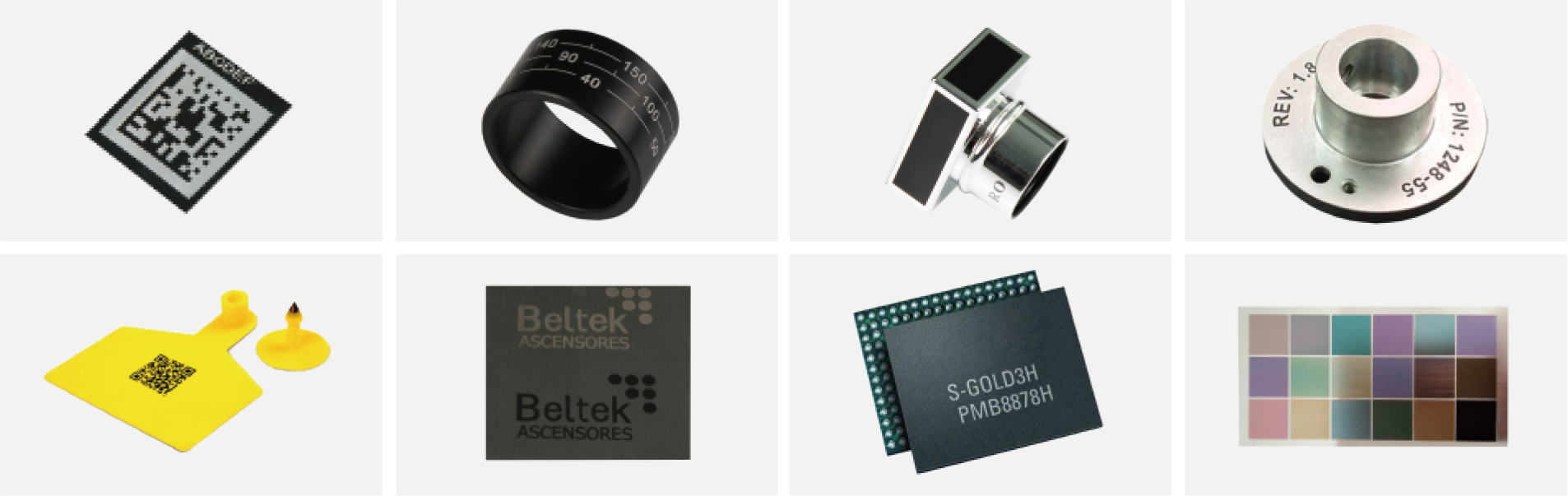

Plastic transparent button, integrated circuit (IC), IC chip, digital product parts, precision machinery, jewelry, sanitary ware, measuring tools, watch glasses, electrical appliances, electronic components, hardware accessories, hardware tools, mobile communication components, steam High-precision product identification such as motorcycle parts, plastic products, medical equipment, building materials and pipes.
Product Name | Items | Brand | Qty | Remark |
Handhold laser marking machine | Frame Structure | 3K Laser | 1 Set | as Fig |
Laser Generator | IPG、SPI、V-Gen、 Nerfurn、JPT、MAX、Raycus(Option) | 1 Set | ||
Galvanometer | China or Import (Option) | 1 Set | ||
software and Control Card | JCZ or Samlight | 1 Set | ||
PC | Industrial Computer | 1 Set | ||
Display screen | LED | 1 Set |
Performance/Model | SK-F20 | SK-F30 | SK-F50 | SK-F100 |
Laser Output Power | 20W | 30W | 50W | 100W |
Wavelength | 1064nm | 1064nm | 1064nm | 1064nm |
Beam Quality M2 | <1.3 | <1.3 | <1.3 | <1.3 |
Laser Q-Switch Frequency | 20kHz~200kHz | 30kHz~200kHz | 50kHz~200kHz | 50kHz~200kHz |
Marking Area | 100×100~200x200mm可选 | 100×100~200x200mm可选 | 100×100~200x200mm可选 | 100×100~200x200mm可选 |
Marking Depth | ≤1mm | ≤1.5mm | ≤2mm | ≤2mm |
Machine Power | 800W | 800W | 800W | 800W |
Min line width | 0.03mm | 0.04mm | 0.05mm | 0.06mm |
Repeatability Precision | ±0.0001mm | ±0.0001mm | ±0.0001mm | ±0.0001mm |
Voltage | 220V±10% / 50Hz /2.5A | 220V±10% / 50Hz /2.5A | 220V±10% / 50Hz /2.5A | 220V±10% / 50Hz /2.5A |
Machine Dimension | 750mm×600mm×1400mm | 750mm×600mm×1400mm | 750mm×600mm×1400mm | 750mm×600mm×1400mm |
Cooling System | Air | Air | Air | Air |
