Introduction:
Laser clean machine, a new type of high-tech products for cleaning the surface, can be cleaning without chemical reagent,medium,dusty and water,and the surface clearness is quite good,also can remove the resin,grease,stains,dirt,embroidered turbidity,coating,paint from the products surface.
Feature:
■ No grinding, non-contact characteristics,efficient and environmentally friendly, no chemical pollution,almost without damage to the surface of the substrate.
■ Can set the light width, cleaning accuracy.
■ Easy to operate,use when powered on and no consumables.
■ Adjustable laser parameters for a variety of environments, better results.
Application:
Widely used in Mold industry, automobile manufacturing, shipbuilding industry, food processing, wastewater treatment, rubber tires, oil, chemical industry, etc.

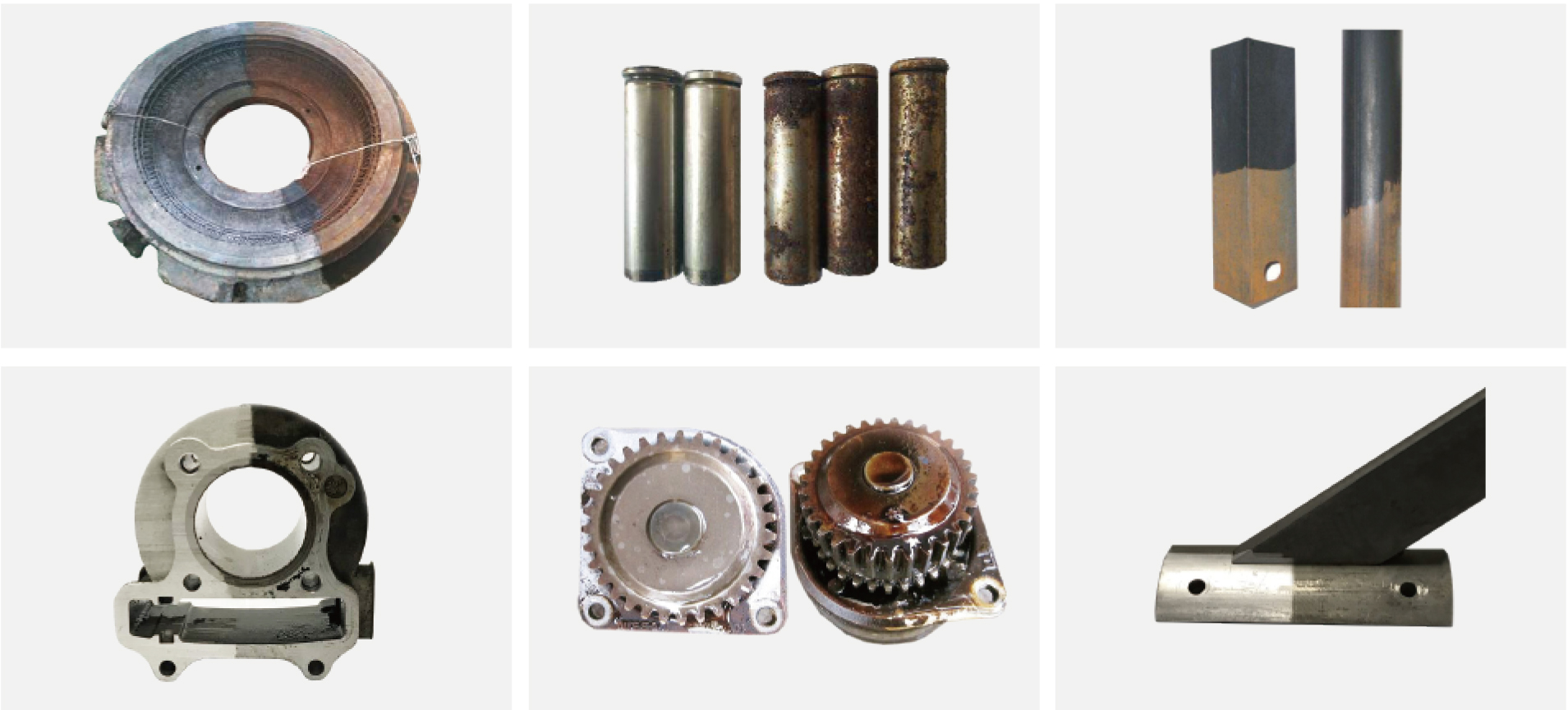

Materials:
Removal the rust of the metal、oil、dirt,removal the coating of the products,removal the welding surface,removal the painting surface,removal the dust of the statues,removal the residue of the rubber molds.
Product Name | Item | Brand | QTY | Mark |
Laser Cleaning | Frame Structure | 3K Laser | 1 Set | as Fig |
Laser Generator | German/China(Optional) | 1 Set | ||
Galvanometer | German/China(Optional) | 1 Set | ||
Software and Control Card | 3K Laser | 1 Set | ||
Long Focus Mirror | 3K Laser | 1 Set | ||
Power supply and Drive system | 3K Laser | 1 Set |
Item | Specification | |||
Model | SK-CL100 | SK-CL200 | SK-CL300 | SK-CL500 |
Power | 100W | 200W | 300W | 500W |
Laser Type | Fiber/Semiconductor | |||
Wavelength | 1064nm | |||
Cooling System | Air | Water | ||
Focus Size | 5mm | 10mm | ||
Machine Type | Handhold/Automatic | |||
N.W | 35KG | 150-200KG | ||
Voltage | 220V±10%,50Hz |
