本机采用扫描振镜的方式把激光光束聚焦到工件上,轻便和高速动态的扫描振镜准确地在焊缝之间跳转,可以将更多的时间

用于焊接和更少的时间来对下一个焊缝进行定位，为客户提高产量, 减少投入成本可选配旋转台,实现多个圆柱电池集流盘飞行焊接。

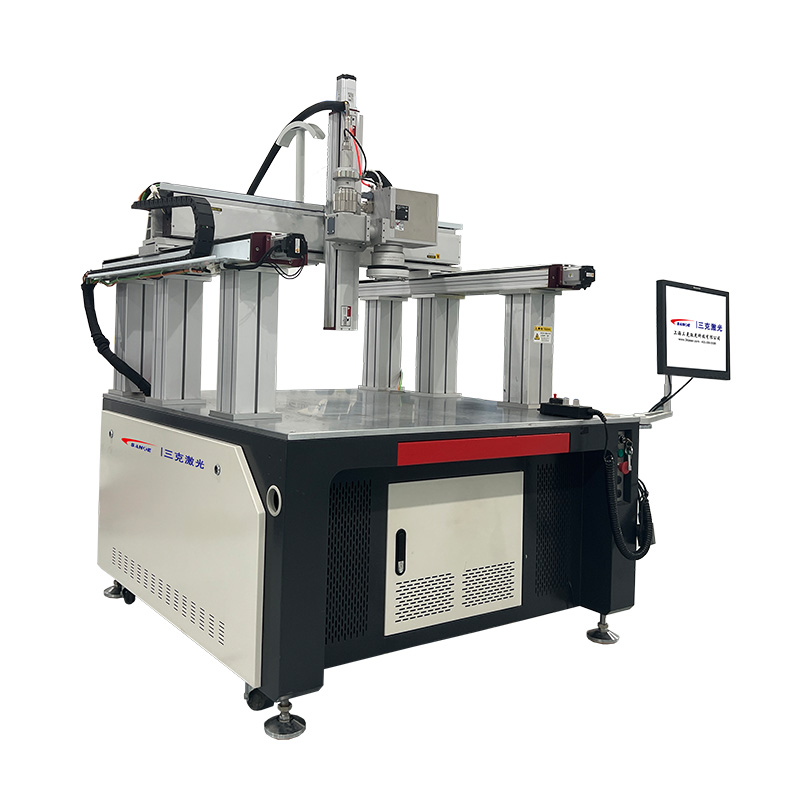

This machine adopts the galvanometer to focus the laser beam on the workpiece, and the light-weight、high-speed

dynamic galvanometer accurately jumps between the weld seams, so that more time can be spent on welding and less

time to position the next weld seam, which can increase production and reduce investment costs for customers.

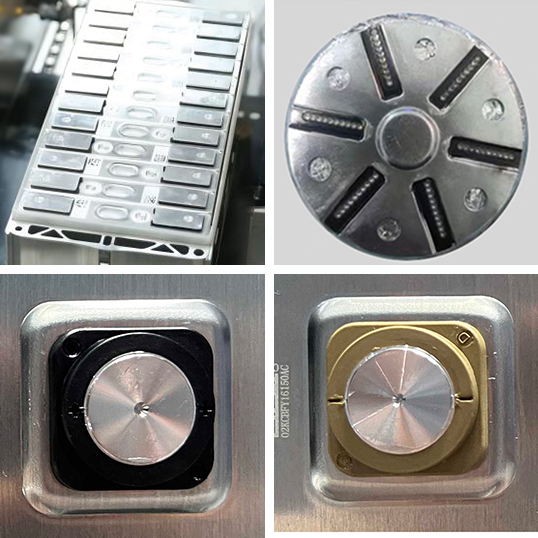

Also can choose optional rotary table, to enables flying welding of multiple cylindrical cell collector plate.

■ 振镜扫描速度快，范围大，无需直线运动轴。

■ 可选配扩展 X、Y 水平移动电动工作台 , 适合在焊接区域超过振镜扫描范围的情况下使用。

■ 振镜 Z 轴电动调整，方便焦点调节。

■ 可选配 CCD 视觉系统 , 方便观察焊接效果。

■ Fast scanning speed, large range, eliminating the need for a linear motion axis.

■ Optional extended X, Y axis electric moving platform, suitable for use in welding areas beyond the scope of

 galvanometer scanning.

■ The galvanometer Z-axis is electrically adjusted for easy  focus adjustment.

■ Optional CCD vision system for easy observation of welding results.

应用于新能源、医疗器械、航空航天、汽车配件、仪器仪表、3C、IT 电子、等产品的高效率激光点焊或密封焊。

Widely used in new energy, medical devices, aerospace,auto parts, instruments 3C, IT electronics, jewelry, Hardware structural parts and other products.

适用于精密不锈钢、碳钢薄板、铜箔、铝箔、金、银等多种金属或合金；也可用于多种异种材料间的焊接。

It is suitable for welding of precision stainless steel, carbon steel sheet, copper foil, aluminum foil, gold, silver and

other metals or alloys; also can be used welding between a variety of dissimilar materials.
